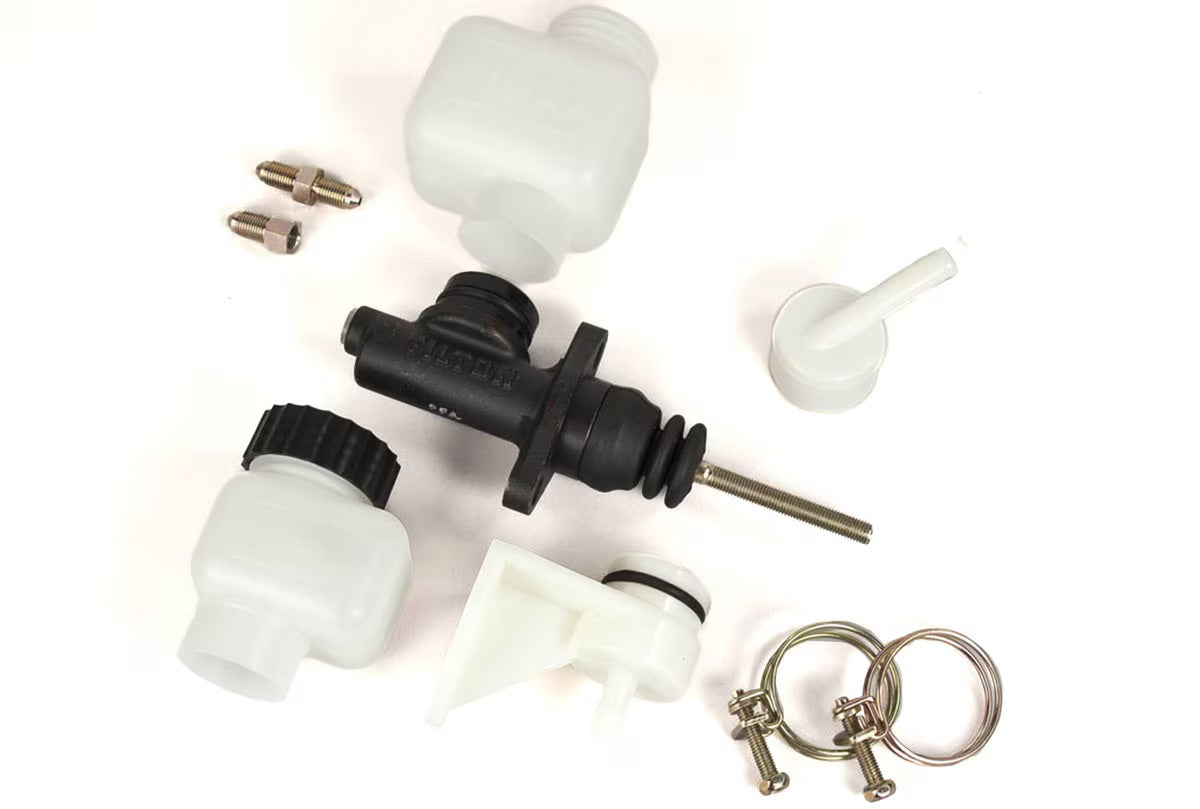

TILTON 5/8" SHORT BODY MASTER CYLINDER KIT

Short Body Tilton Master Cylinders provide the braking power for all Hyper Chassis.

Features:
-Lightweight design
- Aluminum cylinder: black anodized for wear and corrosion resistance
- Close tolerance cut-off ports: shortens "dead" stroke of pedal for quicker activation and improved feel
- Return spring: new design eliminates the potential for coil bind and spring damage at full stroke
- Push rod stroke: 1.1" max
- Mounting option: flange
- Outlet ports: AN-3 (3/8"-24)
- Fittings: 3/16" inverted flare & AN-3 included
- Reservoir cap: newly improved screw-type with seal & baffle
- Cylinder weight: .63 lbs. (depending on bore size)
- Body length: 3.2" (mounting flange-to-outlet port)
- Bore sizes: 5/8", 7/10", 3/4" 13/16", 7/8", 15/16", 1", 1 1/8"
- Kit configurations: universal, small reservoir, medium reservoir
